Smart Tweezers ST5S – Professional Handheld

- высокая скорость измерений
- высокая точность измерений
- широкий диапазон измерений начиная от 0,5 пФ и 50 мОм
- емкостной дисплей
- предустановленные прямые тестовые щупы

Артикул товара: ST52SAD
Производитель: Advance Devices, Inc
Страна производителя: Канада

Гарантия 1 год

Руководство пользователя

• Overview
• Video Overview
• DataSheet
• Specifications
• Review

Main Features

• Built-in high-precision LCR probe
• Convenient one-hand operation
• Ideal for Surface Mount Devices
• Automated component identification
• Automated test range selection
• Manual C, R, L, Z and ESR modes
• Test signal levels 0.5 and 1.0Vrms
• Swiss-made precise test leads
• Diode Polarity/Short Testing
• Secondary D, Q, ESR parameters
• Portable and ergonomic design
• Built-in Li-Ion battery
• Universal Micro USB charger
• High visibility OLED display

Smart Tweezers™ ST5S — What’s New?

• Up to 6 times improved measurement precision:
  • 0.2% for C, 0.2% for R, 0.5% for L
• Test signal levels 0.5 and 1.0 Vrms:
• 1.0Vrms allows precision measurements of X5R and similar ceramic capacitors
• Low signal level helps in-board testings.
• Dedicated ESR and Z modes
• Math null function stores measurement offset
• Tolerance function with audible indicator for component sorting
• Swiss-made test leads
• Multi-parameter dashboard display
• 4-directional navigation control with quick mode selector
• Integrated Rechargeable Li-Ion battery
• Universal USB/Wall charger is included

Smart Tweezers™ is a handheld electronic tool of a new concept.
Its unique design combines a pair of gold-plated SMD tweezers with

ergonomic shielded handles and a precise

full featured LCR impedance meter in a compact, lightweight instrument.

Smart Tweezers™ measures electronic component’s capacitance,

resistance and inductance with high speed

and precision by evaluating circuit impedance. Additionally it tests diodes,

measures ESR and impedance Z.

Smart Tweezers™ provides a perfect solution for testing and identification

of Surface Mount Devices (SMD)

as well as for troubleshooting of complex electronic systems.

Handy Tool for Tiny SMD Components

Surface mount devices are usually tiny and without wire leads, making it

more difficult to test and identify

SMD than conventional components.

Smart Tweezers™ gives users an easy way to sort and evaluate loose

components and to perform on-board

measurements and debugging.

Precise gold-plated leads made by IDEAL-TEK S.A. of Switzerland

are able to reliably contact SMD components

(as small as 0201 format) or take measurements from the devices

already mounted on a board.

Capacitor ESR Meter Mode

Smart Tweezers™ feature a ESR Meter/Tester mode for quality

testing of high value capacitors.

Perfect for Conventional Components

Smart Tweezers™ works fine with conventional though-hole

electronic components. The unit helps to verify

values with high speed and precision.

Built-in Li-Ion Polymer Rechargeable battery

Smart Tweezers™ comes equipped with a built-in high-capacity Li-Ion

rechargeable battery.
Battery replacements are not required.

Universal 110-220V power supply and Micro USB charging cord are included.

Automatic Component Recognition

Resistance, capacitance and inductance can be measured with automatic selection

of the test parameters and test range.

Smart Tweezers™ automatically determines type of the component

(resistance, capacitance or inductance), selects proper

range and signal frequency for highest accuracy measurements.

Manual overrides are available as well.

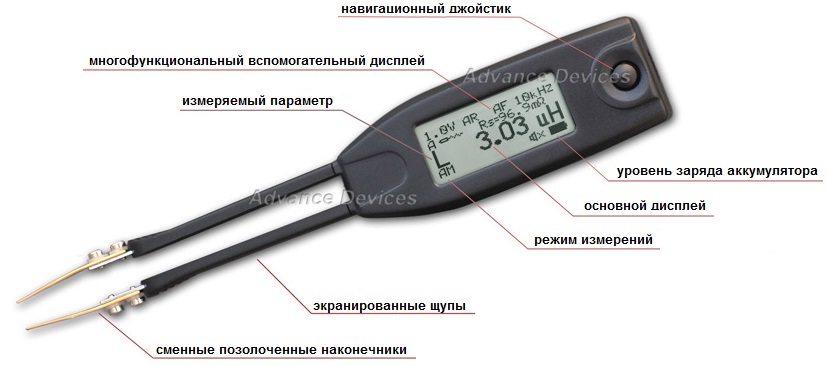

Unit’s display clearly indicates the type of the component, measurement

result and test conditions. The primary display shows

the present reading. The secondary display (on top) shows the present

reading of additional parameters or measurement

conditions when the primary display shows some other feature (L, C).

Ergonomic Design and Convenient Controls

Default settings can be modified by navigating a set of menus with the Navigation Control.

Meter’s display can be easily flipped from the menu for left-handed use.

Continuity/Open Test, Diode Polarity Testing, Additional Parameters and Modes

Smart Tweezers™ LCR meter allows to test various component types, including

secondary components

of Dissipation Factor (D), Quality Factor (Q).

The built-in Equivalent Series Resistance (ESR) mode helps you better understand

the inherent resistance — behavior typically found in capacitors across selected frequencies.

In its DIODE mode Smart Tweezers™ tests diode polarity and indicates if it is short.
Smart Tweezers™ has a continuity detector. Variable beeper sounds for resistance

reading below set thresholds.

Additionally, this function helps to locate shorted conductors (e.g. on a PCB).
In manual modes Smart Tweezers™ measures a specific circuit parameter: L, C, R, Z or ESR.

Manual modes also improves component type identification for in-circuit tests.
Variable test signal output from 0.5 to 1.0Vrms allows to improve test precision in different situation e.g.

for in-circuit measurement and loose leaded ceramic capacitors.
Visible and audible tolerance mode allows to perform component sorting.
Math null function allows to store a pre-measured offset and improve measurement precision.

Warranty

1 year from the purchase date. Advance replacement option is available.
